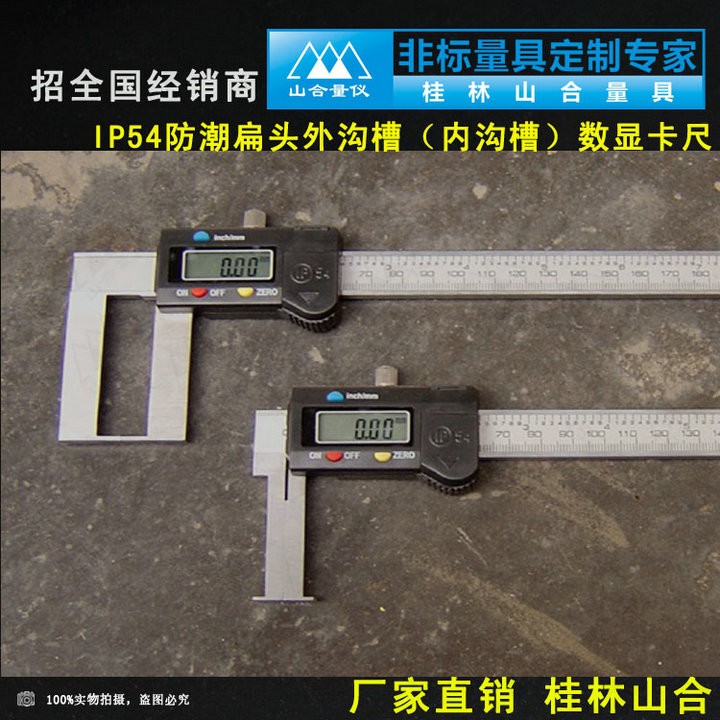

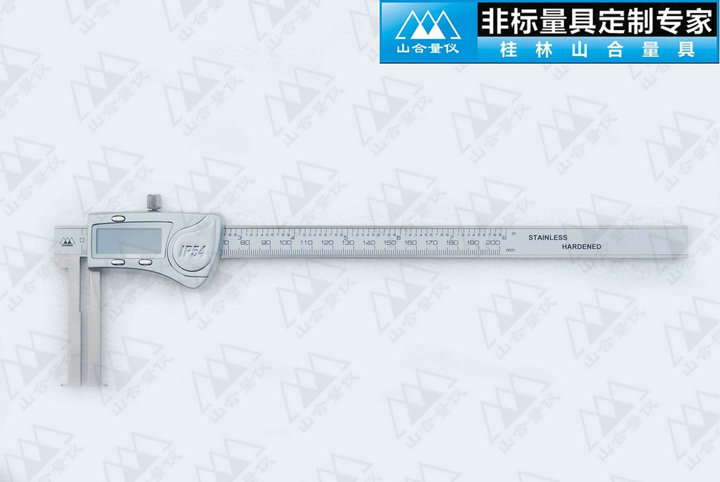

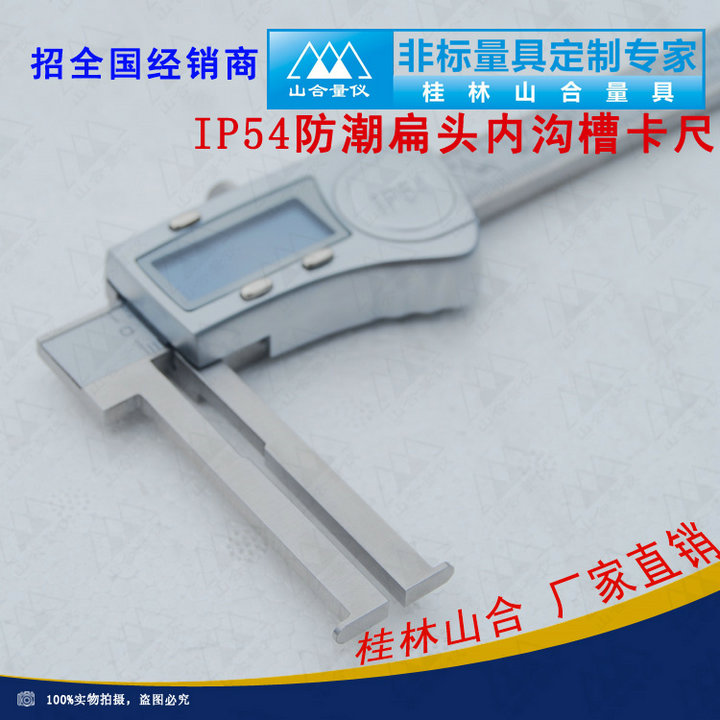

IP54 Dust-proof Splash-proof Inside groove digital calipers with flat point/防潮扁头内沟槽数显卡尺

Features :
Can measure narrow grooves in a hole.
Special order requires the following data:
1.The diameter of the hole
2.The distance from the groove to the orifice
3.The width of the groove
4.The depth of each groove
5.The shape of the groove bottom

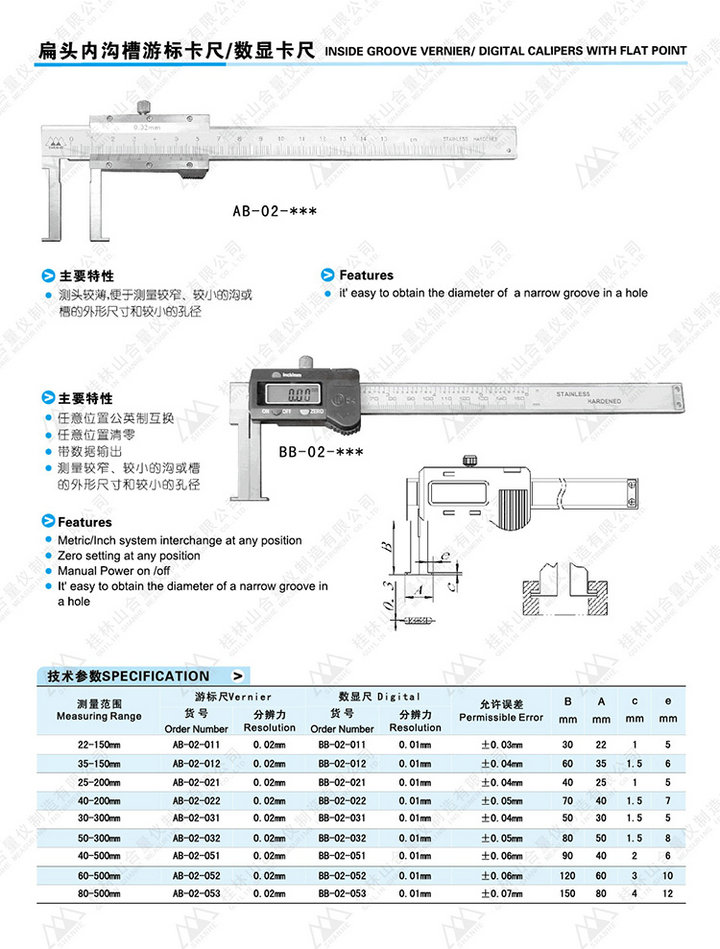

测量范围	货号	分辨力	Permissible Error	B mm	A mm	c mm	e mm
22-150 mm	BB-02F-011	0.01 mm	±0.03mm	30	22	1	5
35-150 mm	BB-02F-012	0.01 mm	±0.03mm	60	35	1.5	6
25-200 mm	BB-02F-021	0.01 mm	±0.04mm	40	25	1	5
40-200 mm	BB-02F-022	0.01 mm	±0.04mm	70	40	1.5	7
30-300 mm	BB-02F-031	0.01 mm	±0.05mm	50	30	1.5	5
50-300 mm	BB-02F-032	0.01 mm	±0.05mm	80	50	1.5	8
40-500 mm	BB-02F-051	0.01 mm	±0.06mm	90	40	2	6
60-500 mm	BB-02F-052	0.01 mm	±0.06mm	120	60	3	10
80-500 mm	BB-02F-053	0.01 mm	±0.07mm	150	150	4	12
